Frymaster 8100159 Fryer 36" Thermopile 2 Lead 250-750 MV

SKU: 8100159 Brand:
Frymaster
Availability:
In Stock
(0)
C$ 105.94 Price reduced from C$ 121.44
Save C$ 15.50
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
36" 2 Lead, Thermopile, 250-750 Mv, Robertshaw 1950-53B
Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
Cleveland Boiler Gas Steam Generators W/O Probes (100,000
Btu - 2 Burners~
150,000 - 3 Burners)~
W/3 Probes (160,000
Btu - 3 Burners~
200,000 - 4 Burners
Groen Braising Pan Hfp/2. Series Chfp, Nhfp.
Imperial Fryer Series If, Ihr, Ir.
Keating Griddle Model 48Bfld
Southbend Fryer Gfs, 4Fr-45
Star Fryer 404A, 615Fa, 630Fa
Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
Vulcan Fryer Tk, Rs, Ghf (Old Hf) Gr, Grd, Grc,Grs,
Wells Grill, Gas
Wolf Fryer Wtf-35,

Description

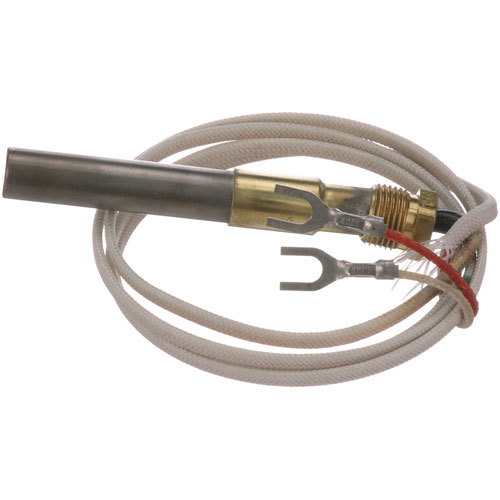

The Frymaster 8100159 Thermopile is a high-quality 36” two-lead thermopile that produces 250-750 mV for gas fryer applications. This design increases the likelihood of efficient heat transfer as well as the uniform distribution of heat making it appropriate for use in the kitchen. Durable construction materials are used in the making of this thermopile, and thus it is highly resistant to high temperatures and highly reliable. Due to the ability to produce accurate voltage output, it helps ignite the burner safely and cook food evenly and economically.

More Information:

  • ADCRAFT:21424||AMERICAN RANGE:A11102 ,AMRA11102||ATOSA:301030006||BLOOMFIELD:2T-42195||CECILWARE:F178A ,F178AL ,F178F ,GMF178A ,GMF178F||CLEVELAND:20410 ,CLE20410||DEAN:810-0159 ,810-0617-1 ,810-06171 ,8100159 ,8100617-1 ,81006171||ENTR?E:400043-1||FRYMASTER:810-0159 ,810-0617-1 ,810-06171 ,8100159 ,8100617-1 ,81006171 ,FM810-0159 ,FM810-0617-1 ,FM810-06171 ,FM8100159 ,FM8100617-1 ,FM81006171||GARLAND:2525-1 ,G02525-1 ,GL1292900 ,GL2525-1 ,GLG02525-1||GRINDMASTER:F178A ,F178AL||GROEN:1126 ,GR001126 ,GR1126||HOBART:00-410839-00004 ,00-497301-00001 ,00-721027-00001 ,00-722158 ,21027-1 ,410839-00004 ,410839-4 ,497301-00001 ,497301-1 ,721027-00001 ,721027-1 ,722158||IMPERIAL:1096 ,IMP1096||JADE RANGE:8800000012||KEATING:022770 ,22567 ,22770 ,4186 ,KEA22567 ,KEA22770 ,KEA4186||LANG:2J-80504-04 ,80504-04||MARKET FORGE:93-0189||SOUTHBEND:1182154 ,SOU1182154||STAR MFG:2J-1182154 ,2J-80504-04 ,2J-Y9270 ,2T-42195 ,2T42195 ,42195 ,4T42195 ,62195 ,WS-62195 ,Y9270||STERO:STA2T-42195 ,STA2T42195 ,STA42195||TRI-STAR:300157 ,AS-300157 ,TRS300157||U-LINE:1950-532 ,1950-53B||VULCAN HART:00-410839-00004 ,00-497301-00001 ,00-721027-00001 ,00-722158 ,110839-4 ,21027-1 ,33681-12 ,410839-00004 ,410839-2 ,410839-4 ,497301-00001 ,497301-1 ,721027-00001 ,721027-1 ,722158 ,VH110839-4 ,VH33681-12 ,VH410839-2 ,VH410839-4 ,VH497301-1

Step1: Turn off fryer power and gas supply, and allow the unit to cool completely before beginning work.

Step2: Remove the existing thermopile from the burner assembly without damaging surrounding components.

Step3: Position and secure the new thermopile in the proper flame path for accurate sensing.

Step4: Reconnect electrical leads firmly to the control valve or ignition module.

Step5: Restore gas, relight fryer, and confirm stable flame and safe operation, checking for leaks.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Frymaster 8100159 Thermopile?

    Inspect the thermopile regularly for soot buildup, corrosion, or loose lead connections that may reduce millivolt output. Keep the pilot flame clean and properly aligned so it fully heats the thermopile surface. Verify stable voltage generation within the required range and ensure wiring insulation remains intact. Shut off gas and allow fryer components to cool before servicing.

  • What are common issues with the Frymaster 8100159 Thermopile?

    • Weak millivolt output causing pilot light failure.
    • Loose or damaged lead connections.
    • Improper placement in flame reducing efficiency.
    • Heat damage or residue buildup impacting performance.
