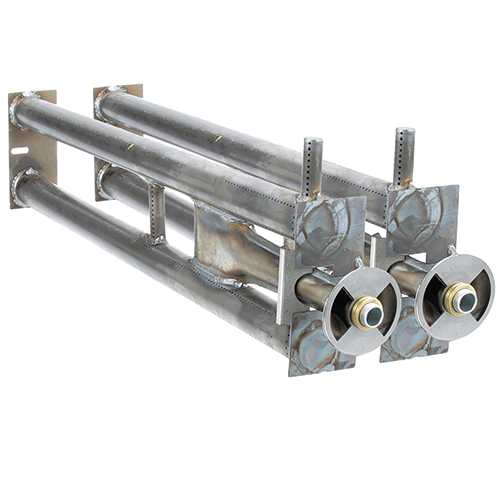

Blodgett 7942 Oven Burner Assembly Set Of 2
Specifications:
| Attribute | Details |
|---|---|
| Steel Burner Set, Left & Right | |
| [ 30" X 6" ] [ Orifice - 9/16" Hole ] W/ Air Shutter, | |
| 3" Plate, Set Of 2 | |
| No Longer Comes With Front Pilot Bracket Welded On. | |
| Blodgett Oven Series | 1000, 1060 (Prior To 8/86). |
| Model (1060-Prior To 8/86) Old Style No Pilot Bracket | |
| For New Style Order # 24-1121 Burners | |
| That Have Pilot Bracket On Burner. |
Description
More Information:
Step1: Shut off the gas supply completely and let the oven cool.
Step2: Remove the old burner assembly carefully, keeping track of connections.
Step3: Position the new assembly securely in the mounting brackets.
Step4: Reconnect all gas and ignition connections, tightening fittings carefully.
Step5: Restore gas and test for proper ignition, flames, and leak-free operation.
Customer Reviews
No reviews yet. Be the first to write one!
Write a Review
-
What maintenance is required for the Blodgett 7942 Burner with Air Shutter?
Remove and brush out the burner slot and air-shutter to eliminate carbon buildup. Inspect the 9/16″ orifice and adjust the air shutter clearance if flame shape becomes lazy or yellow-tipped.
-
How do I install the Blodgett 7942 Burner with Air Shutter?
- Turn off gas supply and electrical power to the oven; allow the oven chamber to cool.
- Removed the old burner tubes 30″ × 6″ steel section including the air shutter housing.
- Align the replacement 7942 burner set left & right in the respective positions, ensuring the 3″ mounting plates sit flush.
- Secure all fasteners and connect the air shutter assembly, verifying the linkage is free and centered.
- Reconnect the gas line with correct fittings, purge the line per local code, restore power and supply.
- Light the burner and adjust the air shutter so that the flame is crisp, blue and stable without lifting or yellow tips.
-
What are common issues with the Blodgett 7942 Burner with Air Shutter?
A common issue is clogged burner orifices or slots leading to uneven heat. Also, mis-adjusted air shutter can cause poor flame quality and increased soot or yellow tips. The 30″ × 6″ size is specified for older Blodgett 1000/1060 ovens.
-
What are the operating limitations for the Blodgett 7942 Burner with Air Shutter?
This burner set measures 30″ × 6″ and uses a 9/16″ orifice hole, designed as a left & right pair for the Blodgett 1000/1060 series ovens
-
Which Blodgett models are compatible with the 7942 Burner with Air Shutter?
It is compatible with Blodgett Pizza Oven, including model 1060
-
What maintenance is required for the Blodgett 7942 Burner Assembly?
Regularly inspect the oven burner assembly for soot, debris, or corrosion. Clean ports and surfaces with a soft brush or cloth, ensuring gas flow is unobstructed. Check connections for tightness and always turn off the gas supply before maintenance for safety.
-
What are common issues with the Blodgett 7942 Burner Assembly?
- Uneven or weak flame output.
- Clogging of burner ports.
- Ignition failure or delayed lighting.
- Corrosion or buildup affecting performance.
-
What maintenance is required for the Blodgett 07942 Burner?
Inspect burner ports and air shutter alignment regularly to ensure even flame distribution and efficient combustion. Remove grease buildup and check orifice holes for blockage. Verify secure mounting and shut off gas supply before servicing.
-
What are common issues with the Blodgett 07942 Burner?
- Uneven flame due to clogged orifices.
- Air shutter misalignment causing poor combustion.
- Burner warping or cracking.
- Gas leakage or inconsistent ignition.
- Grease buildup affecting performance.
