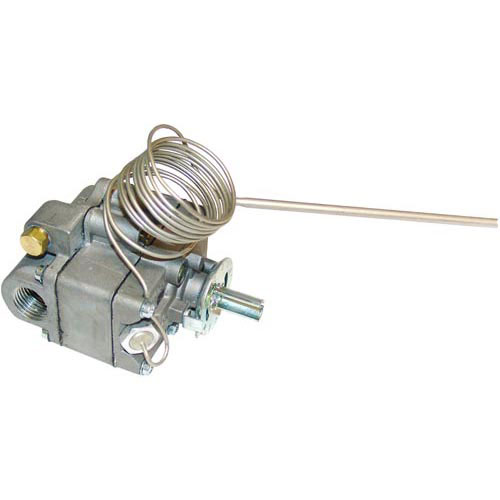

Bakers Pride AS-M1006X Oven Thermostat W/ 3/16" X 14-1/4" Bulb 1/2" FPT

SKU: AS-M1006X Brand:
Bakers Pride
Availability:
In Stock
(0)
C$ 1,025.13 Price reduced from C$ 1,429.18
Save C$ 404.05
Have a Question? +1 (866) 863-0907 / (630) 326-8602

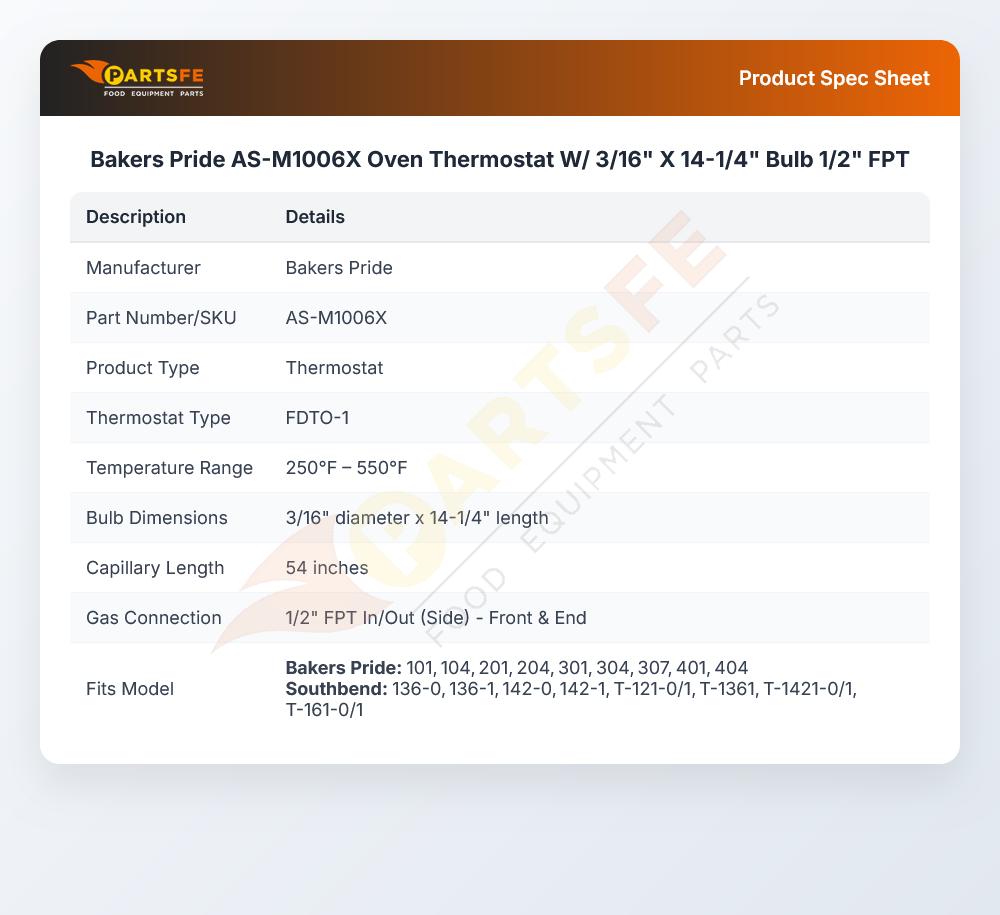

Specifications:

Attribute Details
[ Fdto-1 ] [ Temp Low 250-550 ] [ Bulb 3/16" X 14-1/4" ]
[ Cap 54" ] [ Gas 1/2" Fpt In/Out( Side ) F & E ]
[ Dial # 22-1009 150-550 ] Or
[ # 22-1203 Low-250-550 ]
Bakers Pride
Oven 101, 104, 201, 204, 301, 304, 401, 404.
Southbend
Grill T-121-0/1, T-161-0/1, T-1361, T-1421-0/1.
Oven 136 & 142 & W/Suffix -0 & -1.

Description

The Bakers Pride AS-M1006X Thermostat operates as a dependably precise component that regulates oven temperatures effectively. The device incorporates a 3/16" x 14-1/4" bulb and a 1/2" FPT connection to deliver precise heat regulation which produces consistent cooking outcomes. This thermostat uses strong materials to function well in busy commercial kitchens. The component shortens maintenance periods and minimizes operational performance problems. This device works with different oven types to deliver dependable temperature control which helps professional chefs maintain consistent results in their work environment

More Information:

  • BAKERS PRIDE:AS-M1006X ,BKPM1006X ,M1006X ,M1038X||SOUTHBEND:1010401 ,1010499 ,SOU1010499||U-LINE:4200-017 ,4200-01G

Step1: Turn off oven gas/electric supply and disconnect main power for safety.

Step2: Remove access panel and carefully take out old thermostat assembly.

Step3: Note bulb routing path and capillary tube position before removal.

Step4: Install new thermostat, secure mounting bracket and bulb in oven cavity.

Step5: Reconnect wiring terminals exactly as labeled on original connections.

Step6: Restore power, set temperature, and test thermostat response.

Step7: Inspect operation, check for overheating or irregular cycling for safety.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Bakers Pride AS-M1006X Thermostat ?

    Regularly inspect the capillary bulb and tubing for kinks, corrosion, or leaks to ensure accurate temperature sensing. Keep the thermostat housing clean and free from grease buildup. Verify calibration periodically to maintain consistent oven temperature control and safe operation.

  • What are common issues with the Bakers Pride AS-M1006X Thermostat?

    • Inaccurate temperature readings or drifting calibration.
    • Failure to heat or maintain set temperature.
    • Faulty capillary bulb or broken sensing line.
    • Cycling issues causing uneven oven performance.
    • Thermostat not responding to adjustments.
    • Electrical contact wear or failure.
