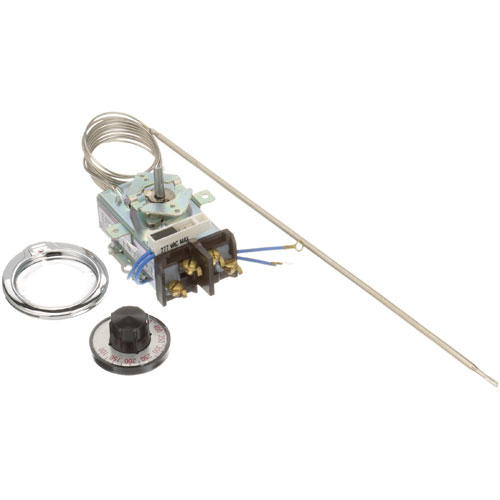

Hobart 804746 Thermostat W/Dial 3/16" X 13" 60" CAP D1/D18

SKU: 804746 2-804746 Brand:
Hobart
Availability:
In Stock
(0)
C$330.07 Price reduced from C$444.57
Save C$114.50
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Type - D1/D18 ] [ Temp 100-450 ] [ Bulb 3/16" X 13"
  • Tin/Zinc ] [ Cap 60" ] [ Mount W/ Front Ears ]
  • 4 Terminal.
  • [ Pilot Light, Dial & Bezel Included ]
  • Pilot Light # 38-1068
  • Dial A249, K-115, # 22-1004 Off-450-100
  • Bezel A557, K-160, # 26-4088
  • Vulcan Grill Series: Heg (Elec) Without "D" Suffix.
  • (For Units With "D" Suffix Use E-121).

Description

The Hobart 804746 Thermostat With Dial D1/D18 3/16" X 13" 60" Cap regulates temperature by sensing the heat through its capillary and adjusting internal contacts to control the flow of power to the heating element in commercial systems. The dial attached can be set manually, which moves the control point and switches the system on and off to keep the system within the desired range. The capillary tube is a connection between the control body and the sensing area, which allows the internal conditions to be accurately detected, and the dial interface to be accessed by the operator to input and change the settings during operation.

Dimensions:

  • Weight: 1.84 lbs
  • Length: 13.75 in
  • Height: 3.5 in
  • Width: 4.13 in

HOBART:

00-347177-00001 00-347177-1 00-804746 347177-1 4746 770571 HOB00-347177-1 HOB347177-1 HOBXNC8X8 XNC8X8

U-LINE:

5000-841 D1-05-060-59

VULCAN HART:

00-804746 4746 770571 VH4746 VH804746
