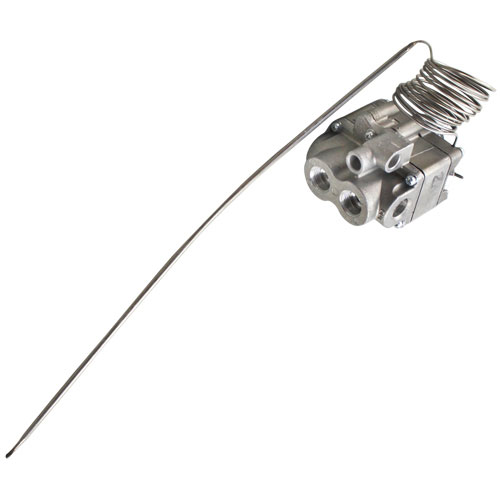

Garland 1017502 Oven Thermostat FDO-1 W/ 72" Capillary 7/16" CCT

SKU: 1017502 Brand:
Garland
Availability:
In Stock
(0)
C$ 421.28 Price reduced from C$ 587.34
Save C$ 166.06
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Fdo Thermostat, Gas In/Out 7/16" Cct.
150-550F, 48" Cap, Outlets H & G.
For Knob Use [Black Dial W/ Insert # 22-1009
1/18/08 Changed From 48" Cap To 72"
Garland
Broiler S/N 11151 & After Sr1-40Er, Sr1-40R, Sr1-50R.
Oven Series 40/50 (Except 2-40/50), 40R, G280 (Except
G280-2), G380, H280, Rc, St286
Master Series Ovens {M--R(E)/Rc(E).

Description

The Garland 1017502 Thermostat FDO-1 is an accurate control instrument for temperature control in the oven. It has a 72" capillary tube, and its working temperature range is 150F – 550F catering to all heat regulating requirements in culinary practices. It is a great thermostat for regulating temperature so the food stays hot, for a longer period, and helps prevent overcooking or undercooking the meals. Its connection size is 7/16" to enable it to fit in new installations of gas ovens as well as replacement installations. These include enhanced energy consumption, enhanced cooking outcomes, and enhanced reliability in busy kitchens to enhance operation.

More Information:

  • GARLAND:1017502 ,1017505 ,1017597 ,1017598 ,G03145-048 ,G03145-072 ,GL1017502 ,GL1017505 ,GL1017598 ,GLG03145-048 ,GLG03145-072 ,GLUK27 ,UK27||U-LINE:4200-002

Step1: Disconnect power and gas supply; ensure oven is fully cool before servicing.

Step2: Remove old thermostat carefully and document capillary routing for reference.

Step3: Mount new thermostat securely on bracket with mounting screws.

Step4: Route capillary carefully without kinks, insert sensing bulb into oven cavity.

Step5: Connect terminals per wiring diagram according to manufacturer diagram.

Step6: Restore power and test temperature control; verify calibration and safety operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Garland 1017502 Thermostat?

    Periodically inspect the Garland 1017502 Thermostat for proper temperature response and ensure its sensing bulb is clean and firmly seated. Check wiring connections for heat wear and tighten loose terminals.

  • How do I install the Garland 1017502 Thermostat?

    • Disconnect the unit from power or gas before servicing.
    • Remove the control panel to access the existing thermostat.
    • Disconnect wiring and carefully pull out the sensing bulb and capillary.
    • Mount the 1017502 Thermostat in the same position.
    • Insert the sensing bulb back into its original tube or clamp, avoiding kinks.

  • What common issues occur with the Garland 1017502 Thermostat?

    Common problems include inaccurate temperature control from a worn sensing bulb, drift in calibration, or failure to heat if the capillary tube is damaged. Loose wiring may also cause intermittent cycling.

  • What are the operating limitations of the Garland 1017502 Thermostat?

    Thermostats in this Garland category typically manage cooking temperatures from roughly 150°F–500°F, depending on the appliance. They operate on standard commercial control circuits, often within 120–240V ranges.
